Quantitative Range 5-50kg Electric Driven Automatic Grain Valve Bag Packing Filling Machine

Warranty : 1 Year

Type : Other, valve bag packing machine

Applicable Industries : Manufacturing Plant

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC

Condition : New

Application : Chemical, Food, Machinery & Hardware, Medical

Packaging Type : Bags, Stand-up Pouch

Packaging Material : Plastic, Paper

Automatic Grade : Semi-automatic

Driven Type : Electric

Voltage : 110-415v( customized)

Power : 2kw

Place of Origin : China

Brand Name : M&J

Weight : 500 KG

Dimension(L*W*H) : 1000x790x1800mm

Key Selling Points : Easy to Operate

Usage : Outer

Quantitative range : 5-50kg

Certification : CE,ISO9001,CQC,CIQ

Marketing Type : New Product 2020

Packaging Details : valve bag cement bagging machine, cement bag packing machine PLYWOOD CASE

Port : Shanghai valve bag cement bagging machine, cement bag packing machine, cement packaging machinery

Supply Ability : 80 Set/Sets per Month

Price : $5,800.00 - $8,800.00/sets

MOQ : 1 set

Contact Now

Quantitative Range 5-50kg Electric Driven Automatic Grain Valve Bag Packing Filling Machine

PRODUCTS DESCRIPTION

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.

RELATED PRODUSTS

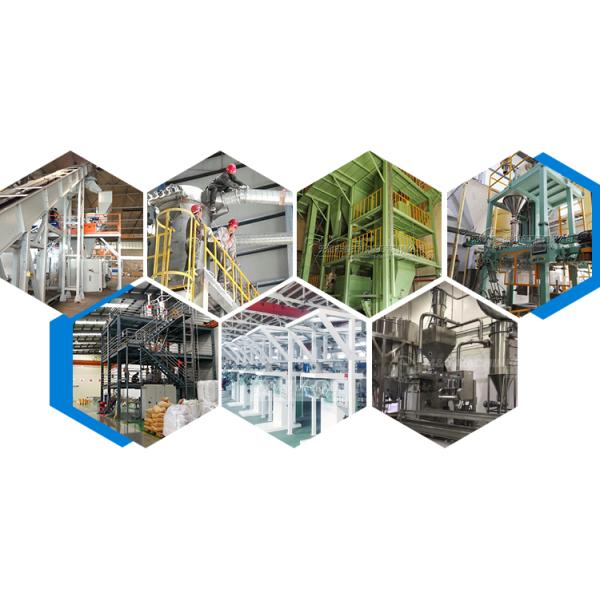

PROJECT DISPLAY

COMPANY PROFILE

M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.

CERTIFICATIONS

WHY CHOOSE US

Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.

We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.

We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
