Mettler weighing scale and bagging controller for 2000kg corn flour packaging machine

Function : FILLING, Wrapping, COATING, filling weighing packing scale, automatic weight packaging line

Application : Food, Chemical, soybean, oat, rice bran, buchetwheat,vegetable seed

Packaging Type : CANS, Bags, Film, Pouch, jute bag, gunny bag, plastic sack, kraft paper bag

Packaging Material : Metal

Automatic Grade : Semi-automatic

Driven Type : Hydraulic

Voltage : 380V

Place of Origin : China

Brand Name : M&J

Dimension(L*W*H) : 180*80*220

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : PLC

Type : Weighing bagging packaging corn silage packing machine, Multi-Function Packaging Machine

Net weight : 500kg, 1000kg, 1500kg, 2000kg

Weighing range : 1kg to 5kg, 2kg, 25kg to 50kg, 5kg-50kg,10kg, 10-20kg,25 to 50 kilos

Weighing scale : mettler bagging controller

After Warranty Service : Video technical support, Online support

Local Service Location : None

After-sales Service Provided : Field maintenance and repair service, Video technical support, Online support

Certification : CE,ICQ

Applicable Industries : Building Material Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location : None

Condition : New

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Packaging Details : corn silage packing machine polly wooden box

Port : Shanghai Port

Supply Ability : 90 Set/Sets per Month corn silage packing machine

Price : $8,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

When the particle packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.

Mettler weighing scale and bagging controller for 2000kg corn flour packaging machine

PRODUCTS DESCRIPTION

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

Model	LCS	LCS-Y	LCS-Y2
Weighing Range	1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions	±0.2%FS
Packing Capacity	150-200bag/hour	250-300bag/hour	480-600bag/hour
Power supply	220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)	3.2	4	6.6
Dimension (LxWxH)mm	3000x1050x2800	3000x1050x3400	4000x2200x4570
Dimension (LxWxH)mm		The size can be customized according to your site.
Weight	700kg	800kg	1000kg

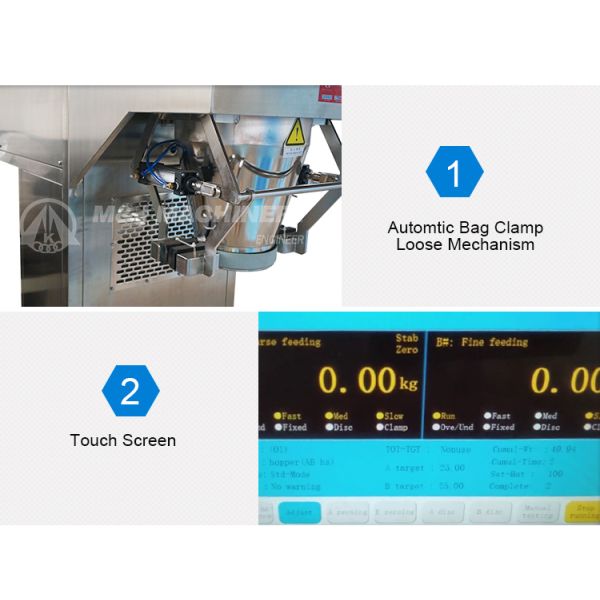

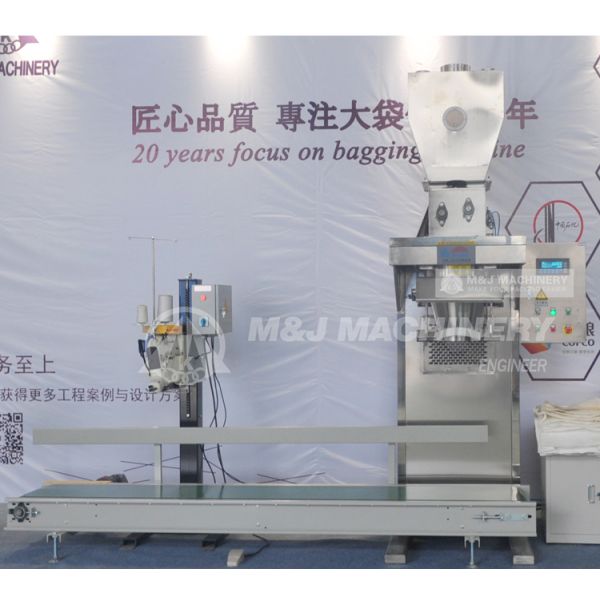

Structure: The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.

RELATED PRODUSTS

PROJECT DISPLAY

COMPANY PROFILE

M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.M&J Machinery Engineer Co., Ltd is one of the most professional manufacturers with 20 years experiences in manufacturing all kinds of packing scales, packing systems and conveyors such as Quantitative Auto Packing Scale, Completely Automatic Packing System, ABS Packing Scale, Buckwheat Processing Line, Screw Conveyor, Bucket Elevator, etc. Located in Wuxi, about 200 kilometers away from Shanghai. Our Company has already gotten the export license and merchandised in domestic and oversea market for many years.

CERTIFICATIONS

WHY CHOOSE US

Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.

We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.

We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
